Diagrams and maps

These maps show what talks to what, where state lives, which rails move money or tokens, and where the trust boundaries sit. For the written explanation, see How HivemindOS works.

Infographic plates

System maps

Start with the control room and fleet maps to see what can reach what. Use the storage, brain, work, and scheduler maps to follow your data. Use the wallet, Honey, native, AEON, and security maps to check trust boundaries.

Control room map

flowchart LR
  User["You"] --> Browser["Desktop app or browser"]
  Browser --> Api["Local API"]
  Api --> Vault["Shared Obsidian vault"]
  Api --> Home["App data folder"]
  Api --> Native["Desktop native actions"]
  Api --> Collector["Local collector"]
  Collector --> LocalRuntime["Local runtimes"]
  Collector --> LocalApps["Local apps and APIs"]
  Api --> Link["Hivemind Link / Tailscale"]
  Link --> RemoteCollectors["Remote collectors"]
  RemoteCollectors --> RemoteRuntime["Remote runtimes"]
  RemoteCollectors --> RemoteApps["Remote apps and APIs"]
  Api --> Workers["Honey / compute services"]
  Api --> Integrations["App connections / GitHub / UsePod / MiroShark"]

Fleet topology

flowchart TB
  Dashboard["Fleet"] --> Snapshot["Machine snapshots"]
  Dashboard --> Apps["My Apps"]
  Snapshot --> LocalCollector["This machine's collector"]
  Snapshot --> LinkProxy["Hivemind Link"]
  LinkProxy --> RemoteCollectorA["Remote collector A"]
  LinkProxy --> RemoteCollectorB["Remote collector B"]
  LocalCollector --> LocalProcesses["Processes / runtimes / tasks"]
  RemoteCollectorA --> RuntimeA["Hermes / OpenClaw / AEON"]
  RemoteCollectorB --> RuntimeB["Hermes / OpenClaw / AEON"]
  Apps --> AppReports["Collector app reports"]
  Apps --> AppProxy["Collector app proxy"]
  AppProxy --> InteractiveApps["Interactive apps"]
  AppProxy --> ApiServices["API-only services"]
  ApiServices --> RouteCatalogs["OpenAPI or built-in route catalogs"]

Runtime chat path

sequenceDiagram
  participant O as You
  participant D as Dashboard
  participant A as Agent profile
  participant API as Chat API
  participant R as Runtime adapter
  participant C as Collector or gateway
  participant S as Session store
  O->>D: Send message, files, folders
  D->>A: Resolve runtime, model, env, wallet, vault
  D->>API: Submit chat request
  API->>R: Select adapter
  R->>C: Local gateway, Link, or remote collector
  C-->>R: Stream events / final response
  R-->>API: Normalized chunks
  API-->>D: Streaming updates
  API->>S: Session and usage metadata

Wallet token rails

flowchart LR
  Agent["Agent wallet config"] --> LocalVault["Local wallet vault"]
  LocalVault --> Base["Base wallet"]
  LocalVault --> Robinhood["Robinhood Chain wallet"]
  LocalVault --> Solana["Solana wallet"]
  Base --> USDC["USDC sends with caps"]
  Robinhood --> USDG["USDG sends and Stock Tokens"]
  Solana --> SolanaUSDC["Solana USDC sends"]
  Agent --> UsePod["UsePod prepaid rail"]
  UsePod --> Deposit["Token deposit address"]
  UsePod --> Proxy["UsePod proxy URL"]
  Agent --> MoneyClaw["MoneyClaw API key"]
  MoneyClaw --> Account["Account / wallet / inbox"]
  Agent --> X402["x402 paid request policy"]
  X402 --> PaidApi["Paid API endpoint"]
  LocalVault --> Backup["Encrypted wallet-vault backup"]

Honey and optional HIVE conversion

flowchart TD
  RuntimeUsage["Runtime usage analytics"] --> Observer["Honey usage observer"]
  Observer --> PrivacyFilter["Privacy filter: no prompts, files, keys, paths, Tailnet IPs"]
  PrivacyFilter --> HoneyLedger["Honey ledger"]
  ComputeGateway["Compute gateway"] --> WorkerReceipt["Signed receipt"]
  WorkerReceipt --> HoneyLedger
  HoneyLedger --> Honey["Available Honey"]
  Honey --> LegacyHive["Legacy ledger HIVE"]
  LegacyHive --> Return["Return to Honey"]
  Honey --> PolicyGate["Authorized conversion policy (closed by default)"]
  PolicyGate --> BankrClaim["Policy-gated HIVE claim (off by default)"]
  BankrClaim --> Treasury["Authorized conversion treasury"]
  Treasury --> BaseWallet["Operator Base receiving address"]

Workboard lifecycle

stateDiagram-v2
  [*] --> Ideas
  Ideas --> Ready: promote / note intake
  Ready --> Working: agent claim
  Working --> NeedsYou: auth / approval / blocked
  NeedsYou --> Ready: unblocked
  Working --> Done: completed
  Done --> Archived: archive
  Done --> Ready: child handoff promoted
  Working --> Ready: stale reclaim
  Done --> History: work history entry

Scheduler loop

flowchart LR
  SharedSchedules["Shared schedule files"] --> SchedulerUI["Scheduler"]
  SchedulerUI --> RuntimeAction["Runtime action"]
  SchedulerUI --> SkillAction["Skill action"]
  RuntimeAction --> Adapter["Runtime adapter"]
  SkillAction --> SharedSkill["Shared skill"]
  Adapter --> Run["Runtime run"]
  SharedSkill --> Run
  Run --> Phases["assigned -> thinking -> executing -> wrapping -> done"]
  Phases --> VaultLog["Shared vault run log"]
  VaultLog --> History["Work History"]

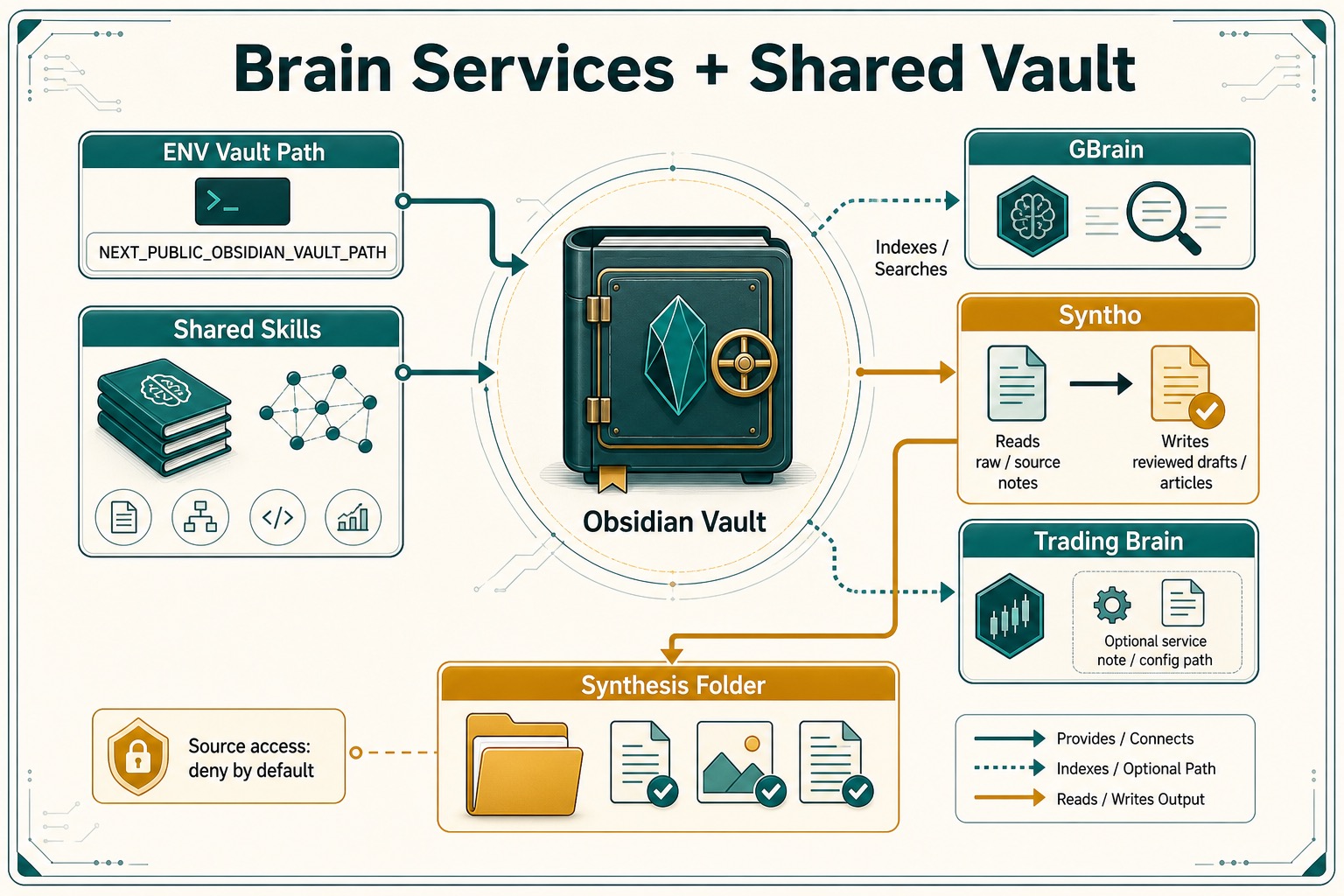

Brain services

flowchart TB
  EnvPath["Vault path setting"] --> Vault["Obsidian vault"]
  Vault --> Graph["Brain graph"]
  Vault --> Skills["Shared skills shelf"]
  Vault --> ServiceNotes["Operations / Brain Services"]
  Graph --> Dashboard["Brain Services"]
  Skills --> RuntimeSkills["Runtime skill sync"]
  Dashboard --> GBrain["GBrain import / embed / dream / query"]
  Dashboard --> Syntho["Syntho reviewed-memory pipeline"]
  Dashboard --> Trading["Trading brain status"]
  Syntho --> Synthesis["Synthesis folder"]
  Syntho --> SourcePolicy["Source access policy: deny by default"]
  GBrain --> Query["Graph memory query"]

Native bridge

flowchart LR
  Feature["Dashboard feature"] --> IsTauri{"Desktop app and local target?"}
  IsTauri -->|yes| NativeCommand["Native command"]
  IsTauri -->|no| ApiFallback["Local API"]
  NativeCommand --> LocalFolder["Local folder browse/create"]
  NativeCommand --> Status["Desktop status"]
  NativeCommand --> Deliverables["Open/reveal deliverables"]
  ApiFallback --> CollectorRoute["Remote collector"]
  CollectorRoute --> RemoteMachine["Remote machine"]

Phone and voice

sequenceDiagram
  participant D as Dashboard
  participant API as Phone API
  participant G as Call gateway
  participant M as Mobile device
  participant A as Agent context
  D->>API: Pair, status, ring, or dashboard call
  API->>G: Build gateway request
  G->>A: Add AEON repo, memory, skills, artifacts
  alt Ring mobile
    G->>M: ring-agent push/call
  else Dashboard call
    G-->>D: LiveKit/dashboard-agent-call config
  end

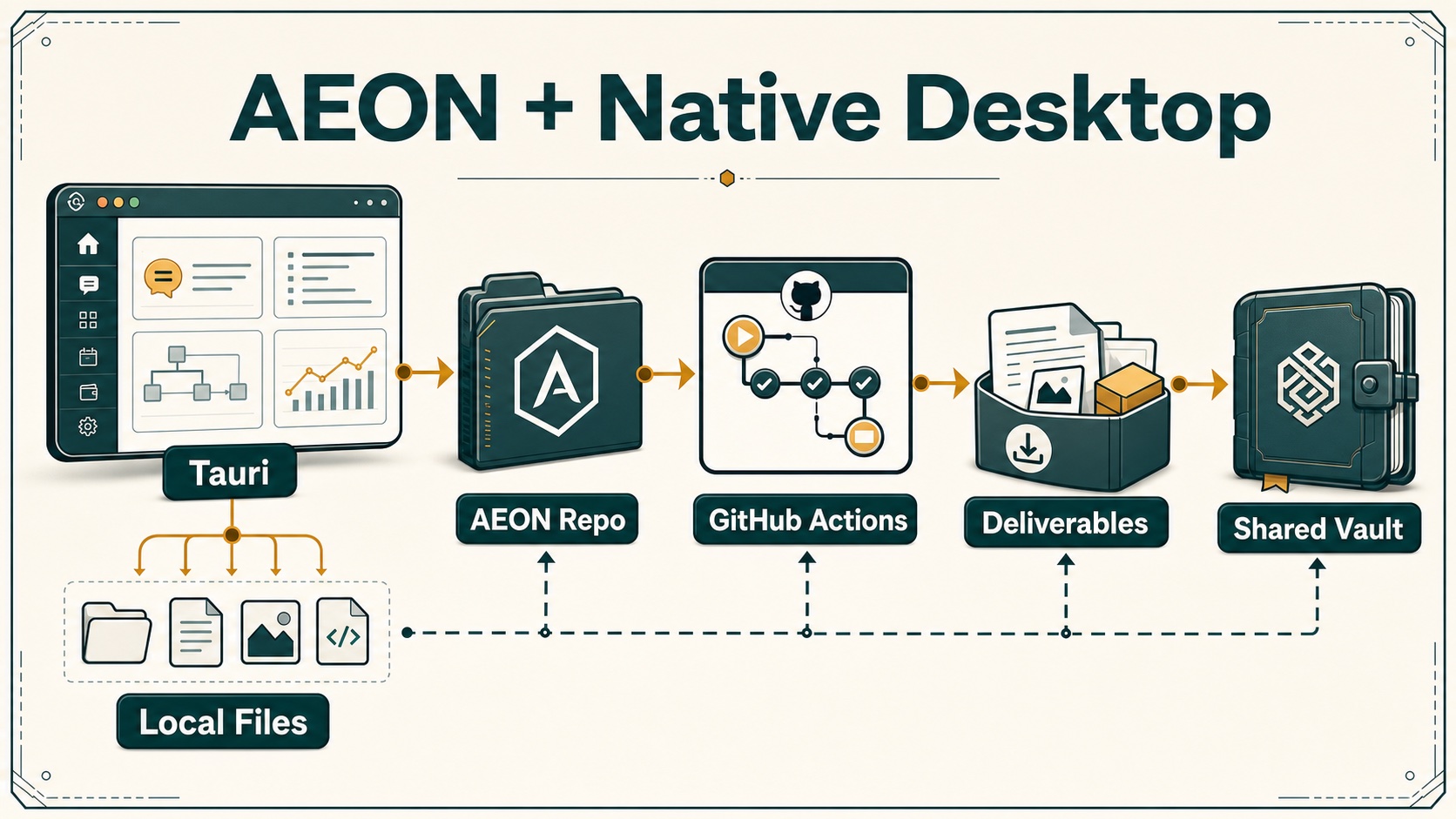

AEON GitHub path

flowchart TD
  OAuth["GitHub OAuth fallback"] --> GHGlobal["GH_GLOBAL in shared env"]
  GHGlobal --> AeonRepo["AEON repo/workspace"]
  AeonRepo --> Secrets["GitHub Actions secrets sync"]
  AeonRepo --> Workflows["Workflow dispatch / schedules"]
  Workflows --> Runner["GitHub Actions runner"]
  Runner --> OIDC["OIDC token"]
  OIDC --> Tailnet["Tailscale short-lived client"]
  Tailnet --> BrainEndpoint["AEON brain endpoint"]
  BrainEndpoint --> Policy["Visibility-scoped brain policy"]
  Policy --> VaultRead["Search / read / append / bulk"]

MiroShark and Swarm

flowchart LR
  SwarmUI["Swarm"] --> Templates["Scenario templates"]
  Templates --> MiroShark["MiroShark companion"]
  MiroShark --> Simulation["Simulation run"]
  Simulation --> Archive["Run archive"]
  Simulation --> Outputs["Posts / market / graph / telemetry"]
  Outputs --> Intelligence["Run intelligence"]
  Intelligence --> AnalysisAgent["Analysis agent"]
  AnalysisAgent --> Publish["Publish or handoff"]
  Publish --> Workboard["Workboard deliverables"]

Storage map

flowchart TB
  Home["App data folder"] --> DashboardState["Dashboard state"]
  DashboardState --> UIPrefs["UI prefs and fast caches"]
  Home --> Env["Shared env"]
  Home --> Kanban["Kanban fallback"]
  Home --> WalletVault["Wallet vault"]
  Home --> MemorySamples["Memory samples"]
  Home --> RuntimeRegistry["Runtime agent registry"]
  Vault["Obsidian vault"] --> SharedBrain["Shared brain notes"]
  Vault --> Skills["Skills"]
  Vault --> Schedules["Schedules"]
  Vault --> WalletLedger["Wallet records"]
  RuntimeHomes["Runtime homes"] --> Hermes["Hermes home"]
  RuntimeHomes --> OpenClaw["OpenClaw home"]
  RuntimeHomes --> Aeon["AEON repos/workspaces"]

For exact paths and API route groups, see API and storage reference.

Security boundaries

flowchart LR
  PublicDocs["Public docs: no secrets"]:::public
  Browser["Your browser or desktop app"]:::local
  LocalApi["Local dashboard API"]:::local
  Native["Desktop native actions"]:::local
  Vault["Private Obsidian vault"]:::private
  WalletKeys["Wallet keys"]:::private
  Tailnet["Tailnet / Link"]:::tailnet
  Collector["Collectors"]:::tailnet
  RemoteApps["Remote apps"]:::tailnet
  Workers["Honey / compute services"]:::external

  PublicDocs -.-> Browser
  Browser --> LocalApi
  LocalApi --> Native
  LocalApi --> Vault
  LocalApi --> WalletKeys
  LocalApi --> Tailnet
  Tailnet --> Collector
  Collector --> RemoteApps
  LocalApi --> Workers

  classDef public fill:#f7ead8,stroke:#b87319,color:#141716
  classDef local fill:#e6f3f0,stroke:#0a8fa6,color:#141716
  classDef private fill:#f8f3e8,stroke:#1e2724,color:#141716
  classDef tailnet fill:#eef5ef,stroke:#27865f,color:#141716
  classDef external fill:#fffdf8,stroke:#bbb3a3,color:#141716
